£1,255.00 + VAT

16×16 Modular Matrix Chassis for HDMI or HDBaseT input and output cards. 4K60Hz. 150m Range over CAT6. Seamless Switching. Video Wall Splicing. C4 Drivers. 3U Rack Mount.

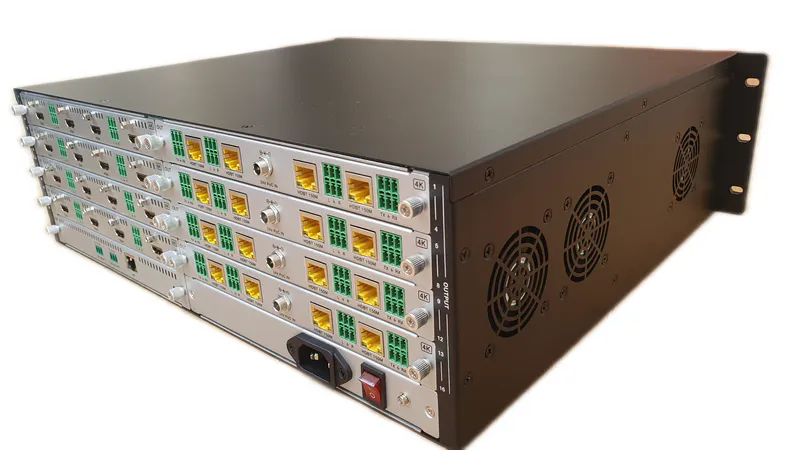

  • 3U Modular Matrix Chassis with single Power Supply. Add as many input and output card modules as required to build your desired configuration up to 16×16. Input and Output module cards and HDBaseT Receivers, where required, are sold separately (any listing images showing installed cards are for illustration only).
  • Supports 4K60Hz. HDCP 2.2 and HDMI 2.0b compliant. Supports 150m range over CAT6
  • Mix input and output formats between HDMI and HDBseT (other format cards such as SDI, VGA and DVI are available on request). Input and Output cards have 4 ports each. This Chassis has 4 Input and 4 Output card slots.
  • This system offers seamless / instant switching. Video wall splicing is also supported and easily managed through the web interface.
  • The matrix does not support IR passback, but the (Android) control app has integrated controls for any Sky boxes on the same network as the matrix.

1 in stock

Product Code: MX4K1616M-BT150 Category: Tags: , , , , , Brand:

Description

3U Modular Matrix Chassis with single Power Supply. Add as many input and output card modules as required to build your desired configuration up to 16×16.

Supports 4K60Hz. HDCP 2.2 and HDMI 2.0b compliant. Supports 150m range over CAT6

Mix input and output formats between HDMI and HDBasT (other format cards such as SDI, VGA and DVI are available on request).

Input and Output cards have 4 ports each. This Chassis has 4 Input and 4 Output card slots.

This system offers seamless / instant switching.

Video wall splicing is also supported and easily managed through the web interface.

The matrix does not support IR passback, but the control app has integrated controls for any Sky boxes on the same network as the matrix

8×8 and 36x 36 variations are available

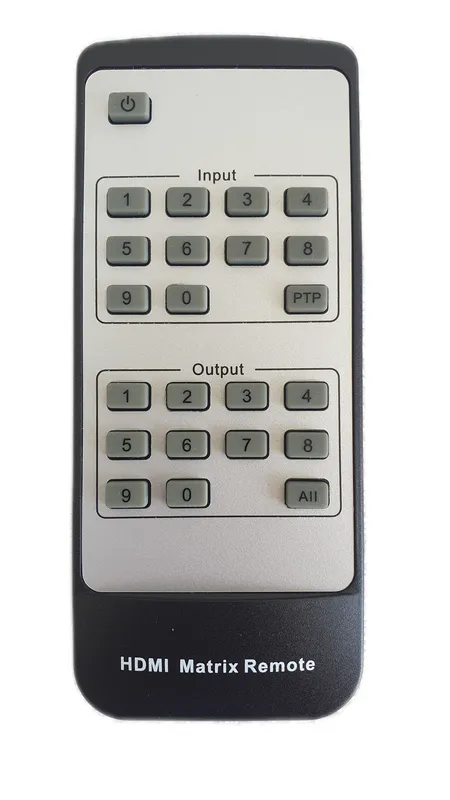

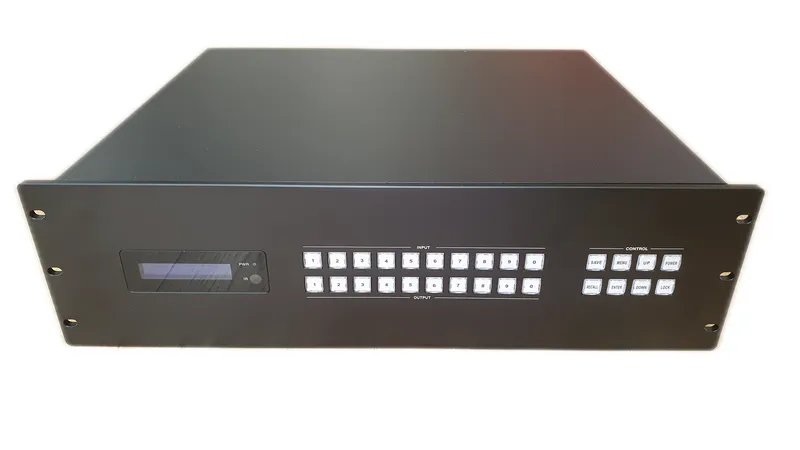

Contol is via front panel buttons, RS232 or TCP/IP command, Web Interface or Smartphone app.

C4 Drivers are available

The matrix offers CEC control of connected screens to allow operators to turn all displays on/off with a central command instead of visiting each display in the building

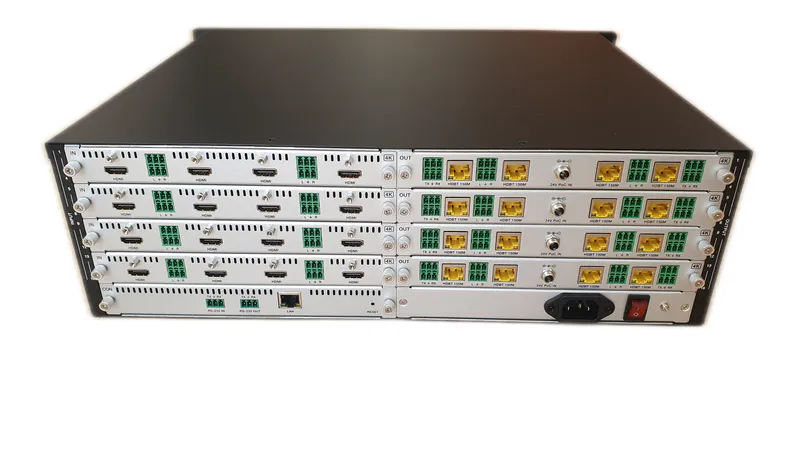

Input and Output modules and Receivers are sold separately (any listing images showing installed cards are for illustration only).

Builds into configurations: 4×4, 4×8, 4×12, 4×16, 8×4, 8×8, 8×12, 8×16, 12×4, 12×8, 12×12, 12×16, 16×4, 16×8, 16×12 and 16×16

Manual

Download(5 MB)

User Manual and Guide to IO Cards
