2x1 HDMI Multi-Viewer with PiP & RS232 control
Click to enlarge

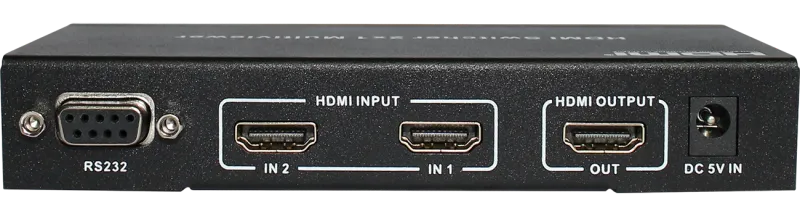

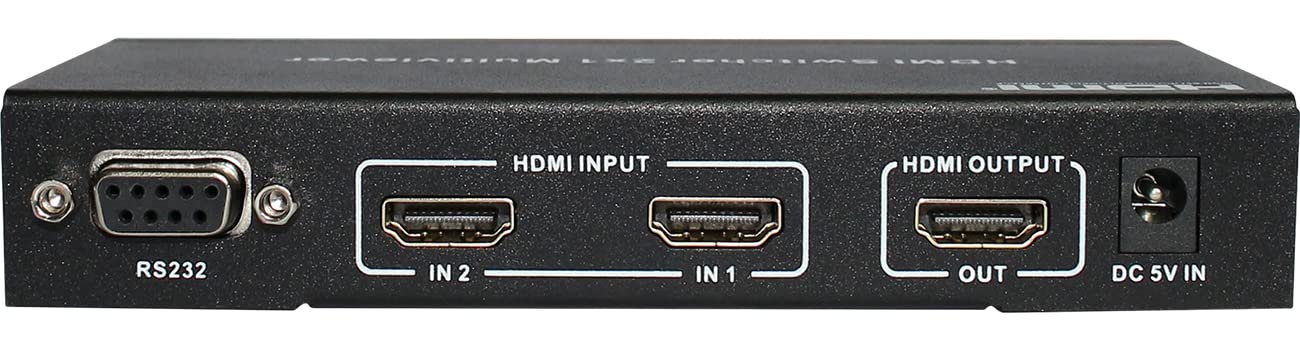

2 x 1 Multiviewer Switch. View 2 HDMI inputs side by side, Picture in Picture (PiP) or fullscreen. RS232, IR and front panel controls. [MVHD21H]
• 2 input and 1 output multi-viewer switcher
• Four operation modes including single display, PIP (picture in picture), POP (picture on picture) and 16:9 POP
• PIP window size can be user defined
• Supports High Definition resolutions up to 1080P@60Hz
• Output resolution supports 1080p,720p,1080i,1024x768,1360x768
• Selectable audio from any one of two HDMI sources
• Supports CEC bypass function
• Flexible control through on-panel buttons, IR remote control or RS-232
| Technical | |
| HDMI Compliance | HDMI 1.3 |
| HDCP Compliance | HDCP 1.3 |
| Video Bandwidth | 6.75 Gbps |
| Video Resolutions | up to 1080P@60Hz |
| Color Space | RGB, YCbCr 4:4:4, YCbCr 4:2:2 |
| Color Depth | 10-bit, 12-bit |
| Audio Formats | PCM 2CH, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS 5.1, Dolby Digital+ |
| ESD Protection | Human body model — ±8kV (air-gap discharge) & ±4kV (contact discharge) |
| Connections | |
| Inputs | 2x HDMI Type A [19-pin female] 1x 9-pin D-sub [RS-232] |
| Outputs | 1x HDMI Type A [19-pin female] |
| Mechanical | |
| Housing | Metal Enclosure |
| Dimensions | 70mm [W] x 140mm [D] x 25mm [H] |
| Net Weight | 300g |
| Power Supply | Input: AC100 - 240V 50/60Hz Output: DC 5V/1A (US/EU standards, CE/FCC/UL certified) |
| Power Consumption (Max) | 3W |
| Operation Temperature | 32 - 104°F / 0 - 40°C |
| Storage temperature | -4 - 140°F / -20 - 60°C |
| Relative Humidity | 20 - 90% RH (no condensation) |
