HDBaseT 4K HDMI extender 120m range

Perfect for long distances. Send 4K up to 120m and 1080p to 150m. IR blasters and receivers included. [EX4K-BT120]

SKU

EX4K-BT120

Price

£148.00ex VAT

Availability

In stock

Quantity

This is the HDMI and IR extender that you need if you have a longer cable run.  HDCP2.2 compliance and 4K@60Hz support means that these are ideal for Sky Q or Virgin UHD channels as well as other 4K devices like Amazon Fire Sticks,Apple TV etc.  This model has analogue audio de-embedding on the receiver which can be very handy if you need to connect an amplifier at the remote end.  Other very useful features include the HDMI loop out for a local display on the transmitter and the Power over Cable (PoC) feature that means that a power socket is only required at one end (can be either end).

The unit is supplied with wall mounting ears for the RX and TX units as well as the IR blaster and receiver cables that you will need in order to control your 4K/HD source from in front of the remote display.  HDMI CEC commands are passed through to the receiver end only and not to devices attached to the HDMI Loop out.

Technical Specifications

HDMI Compliance HDMI 2.0
HDCP Compliance HDCP 2.2 / HDCP 1.4
Video Bandwidth 18Gbps
Video Resolution 4K2K 50/60Hz 4:4:4
4K2K 50/60Hz 4:2:2
4K2K 50/60Hz 4:2:0
4K2K 30Hz 4:4:4
1080p, 1080i, 720p, 720i, 480p, 480i
All PC resolutions including 1920 x 1200
Color Space RGB / YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
Color Depth 8/10/12-bit (1080P60Hz, 4K30Hz, 4K60Hz YCbCr 4:2:2/4:2:0)
8-bit (4K60Hz 4:4:4 )
HDMI Audio Formats LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus(DD+), DTS-ES, DTS HD Master, DTS HD-HRA, DTS-X
L/R Audio Formats PCM 2.0
Transmitter Inputs

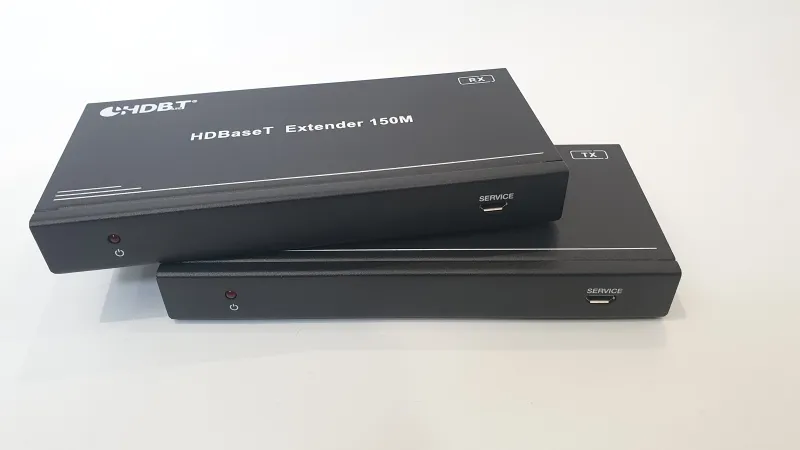

1x HDMI Type A [19-pin female] 1x SERVICE [Mini-USB, Update port]

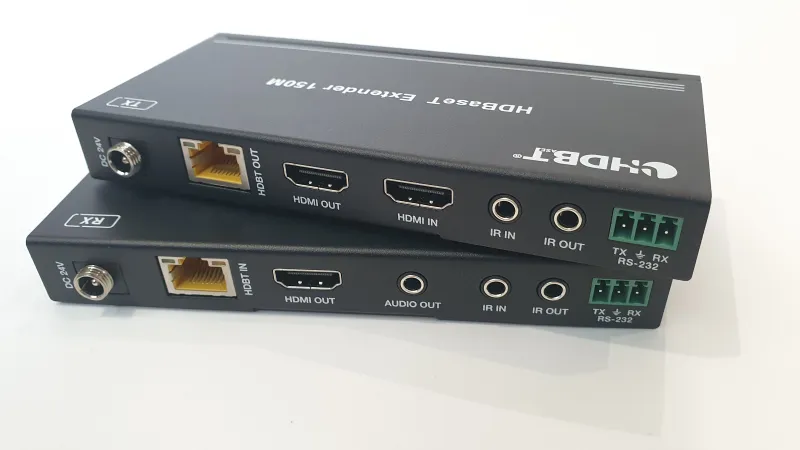

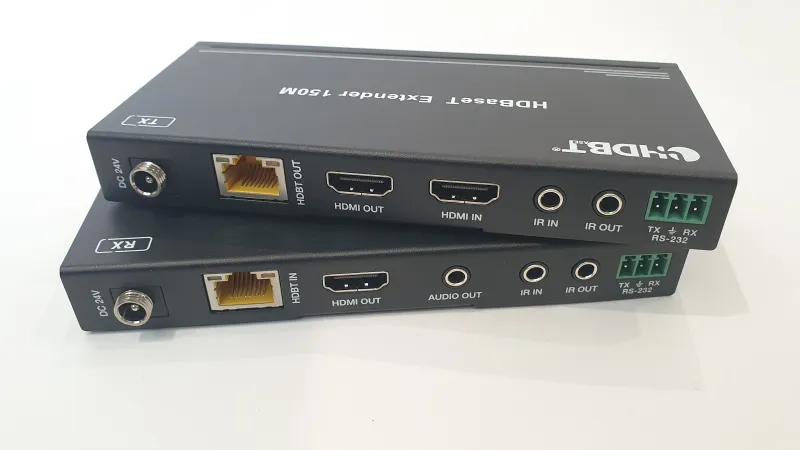

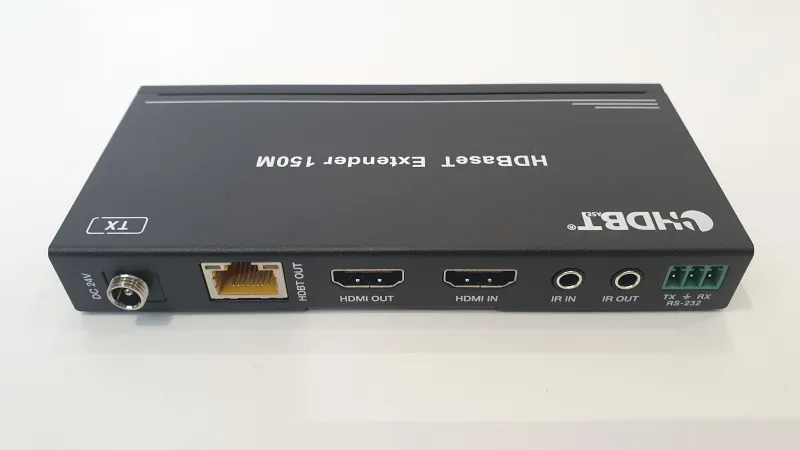

Transmitter Outputs 1x HDMI Type A [19-pin female] 1x HDBT OUT [RJ45, 8-pin female]
Transmitter Control 1x IR IN [3.5mm Stereo Mini-jack] 1x IR OUT [3.5mm Stereo Mini-jack]  1x RS-232 [Phoenix jack]
Receiver Inputs 1x HDBT IN [RJ45, 8-pin female] 1x SERVICE [Mini-USB, Update port]

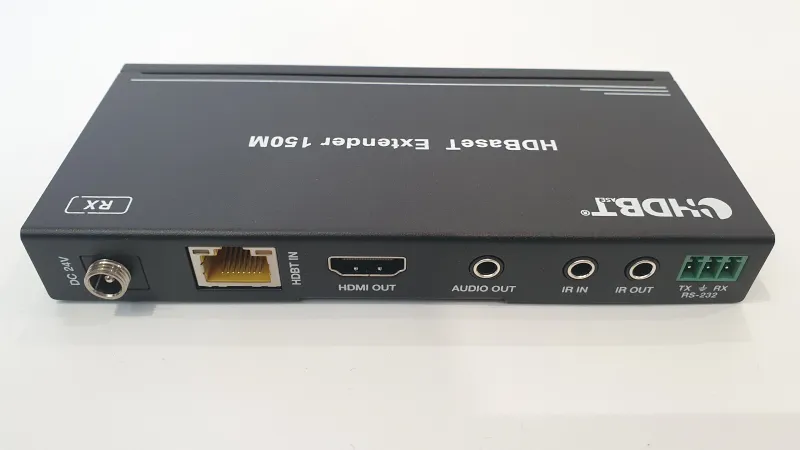

Receiver Outputs 1x HDMI Type A [19-pin female] 1x AUDIO OUT [3.5mm Stereo Mini-jack]
Receiver Control 1x IR IN [3.5mm Stereo Mini-jack] 1x IR OUT [3.5mm Stereo Mini-jack] 1x RS-232 [Phoenix jack]
Housing Metal Enclosure
Dimensions Transmitter / Receiver: 140mm [W] x 65mm [D] x 18mm [H]
Weight Transmitter: 160g, Receiver: 155g
Power Supply

Input: AC 100 - 240V 50/60Hz  Output: DC 24V/1A

Power Consumption 9.36 W

Cable / Resolution / Distance Table

 4K@60  120m
 1080p 150m
 HDMI Input Cable  4K@60 - 5m     1080p - 15m
 HDMI Output Cable  4K@60 - 5m     1080p - 15m


The manual for this product is available HERE
