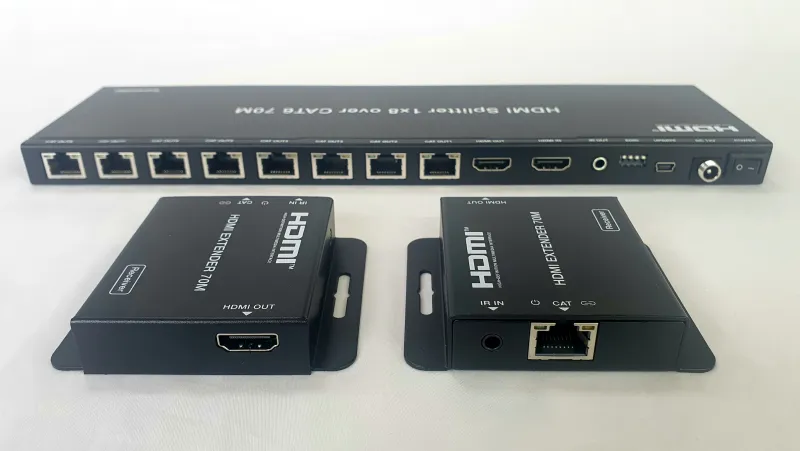

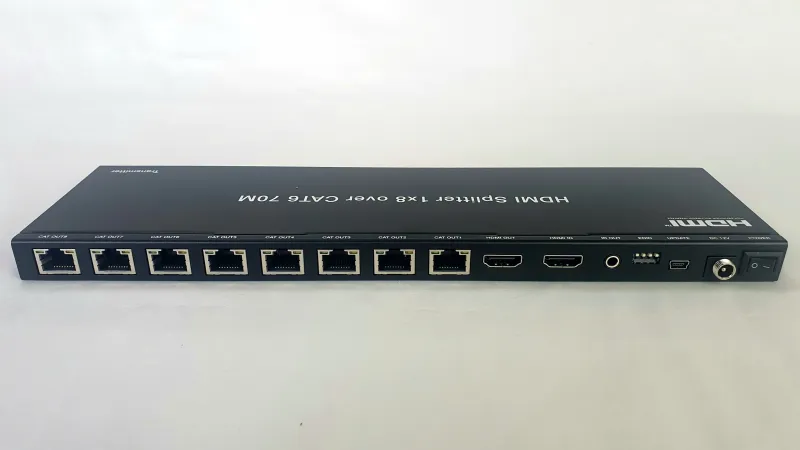

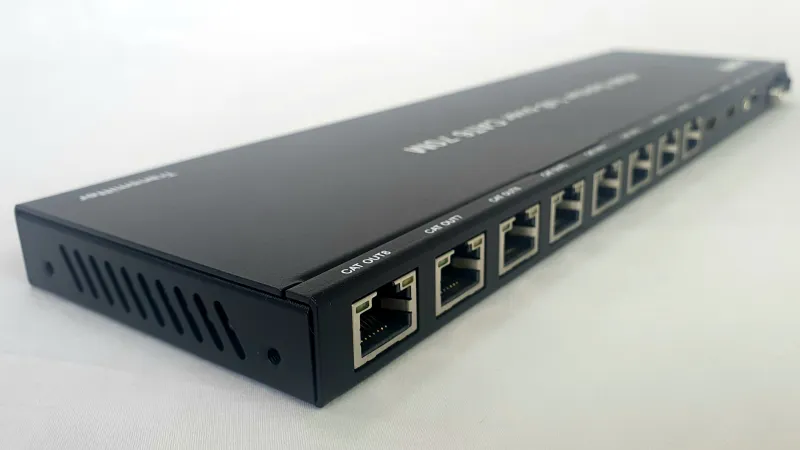

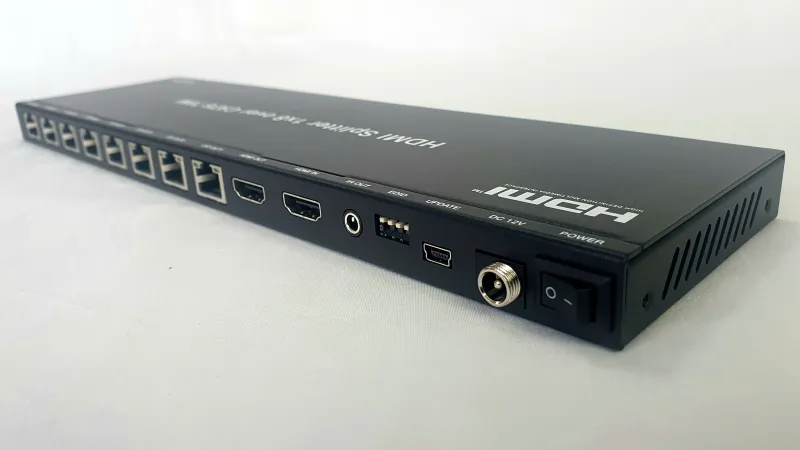

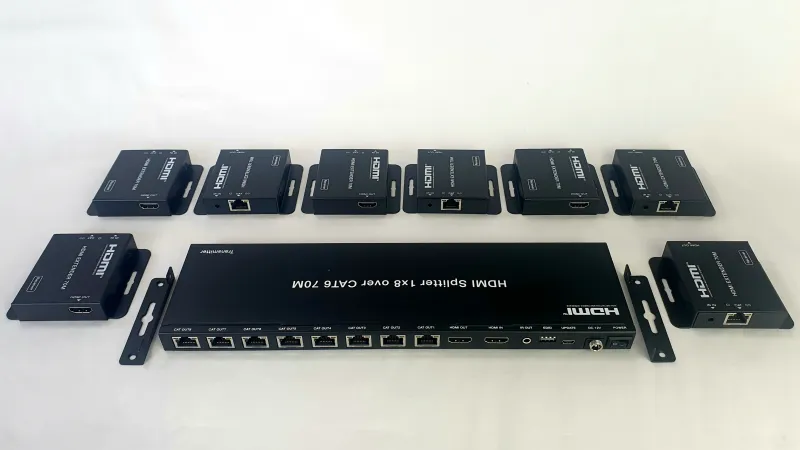

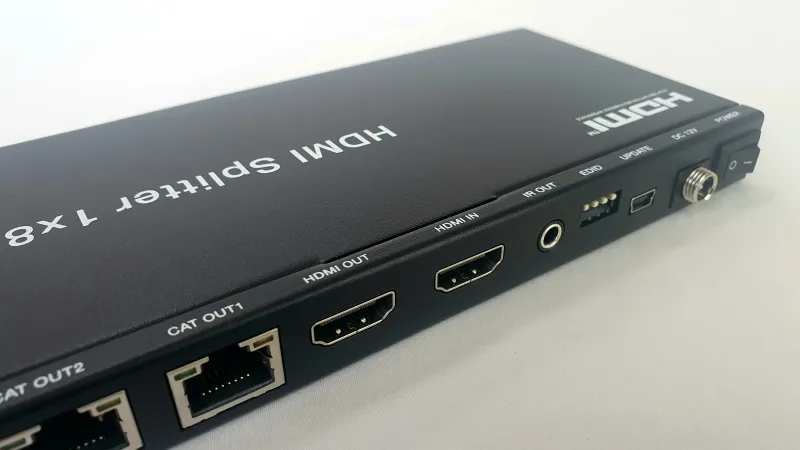

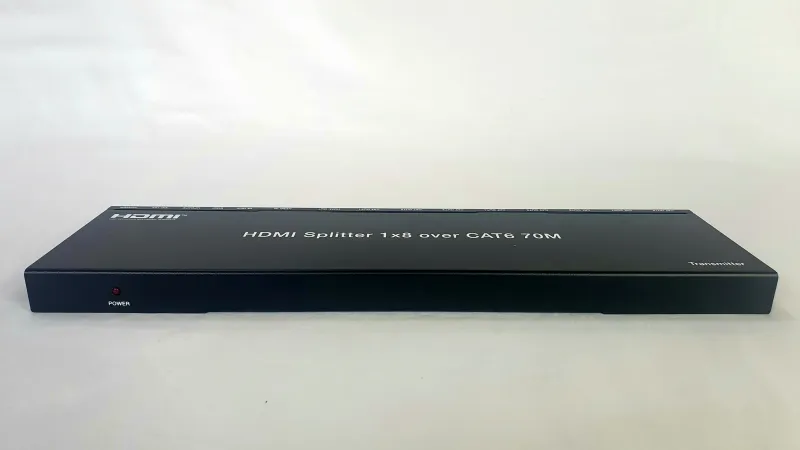

Distribute 1 HDMI source to any 8 remote display devices over Cat5e/6/7 Ethernet cable and to 1 local display via HDMI cable connected to the HDMI loop out port. The system has a transmission range of up to 70m for HD resolutions up to 1080p when using CAT6 or above.
The remote receivers are powered over cable (PoC) from the transmitter which means that no additional power source is required at the display end. The PoC feature is one way - the transmitter can not be powered from the receiver end.
This system supports one way IR control signal pass-through which allows the user to control the TV source from in front of any of the remote displays. The required IR receiver and emitter cables are all included.
The system is HDCP1.4 and HDMI 1.4 compliant and will transmit Sky, Virgin, Freeview, Freesat and other HD sources. If you intend to distribute SkyQ UHD, Virgin UHD or other 4K channels you will need a 4K system like the FOURKAY 1x8 4K@60Hz Splitter Extender
The product manual is HERE
Compliance : HDMI 1.4 & HDCP 1.4
Video Bandwidth : 297MHz / 10.2Gbps
Video Resolution : 480i~1080p @ 50/60Hz
Colour Depth : 8-bit, 10-bit, 12-bit
Colour Space : RGB, YCbCr_4:4:4/4:4:2 , YUV_4:2:0
Audio Formats : LPCM 7.1CH, Dolby True HD, DTS-HD Master Audio
Transmission Distance : 1080p@60Hz up to 70m
Dimensions - Transmitter : 295mm x 82mm x 18mm Weight - 628g
Diminsions - Receiver : 79.5mm x 69mm x 16.5mm Weight 130g
Power Supply : 12V / 2.5A DC Power Supply
