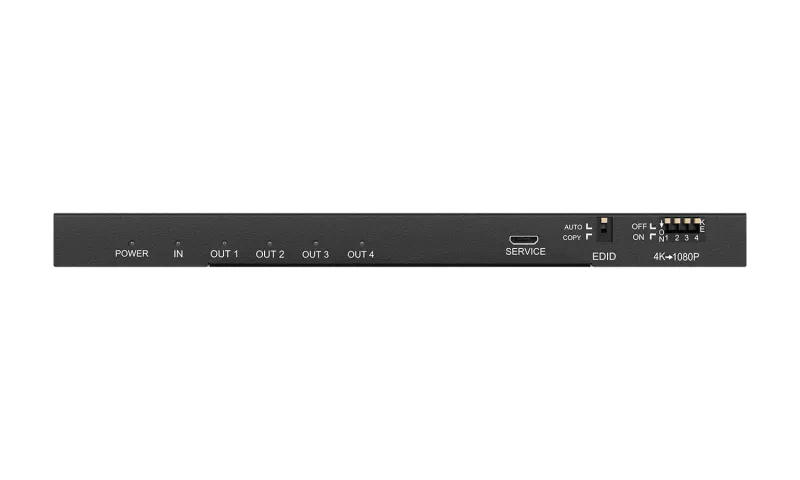

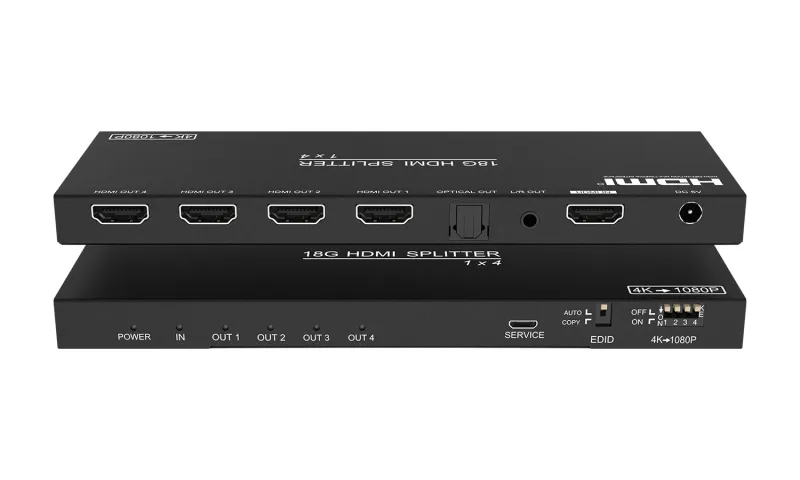

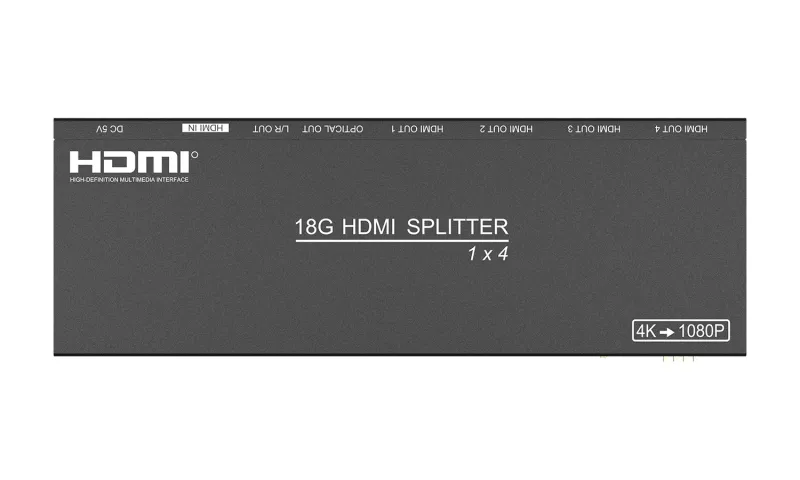

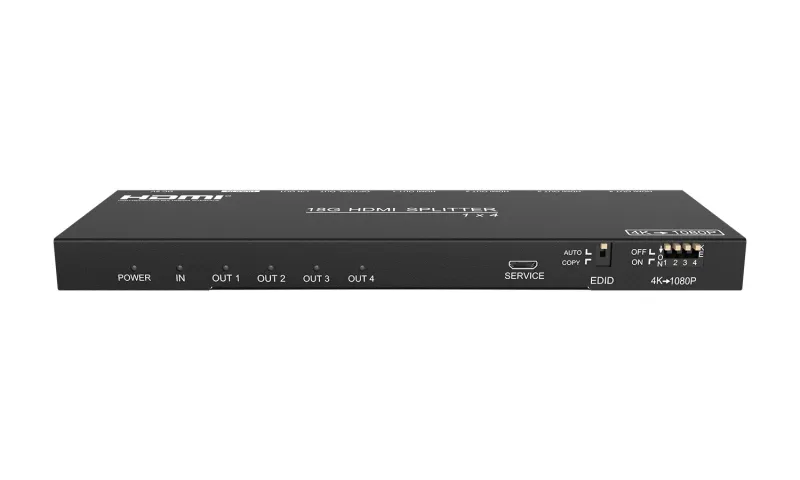

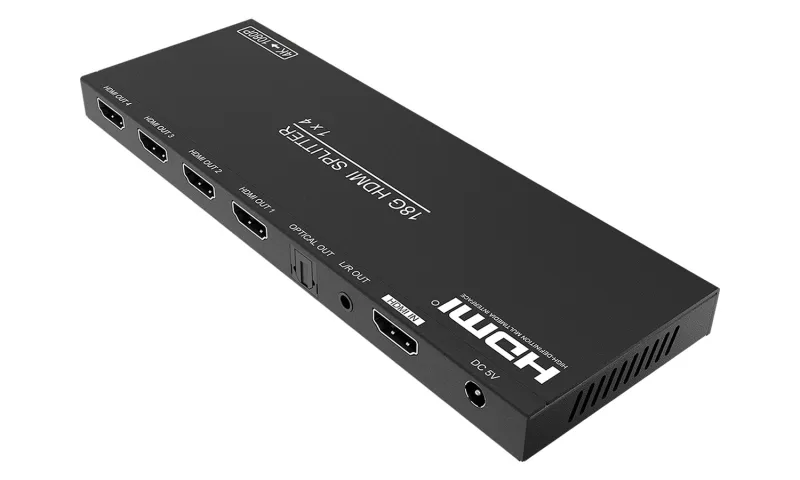

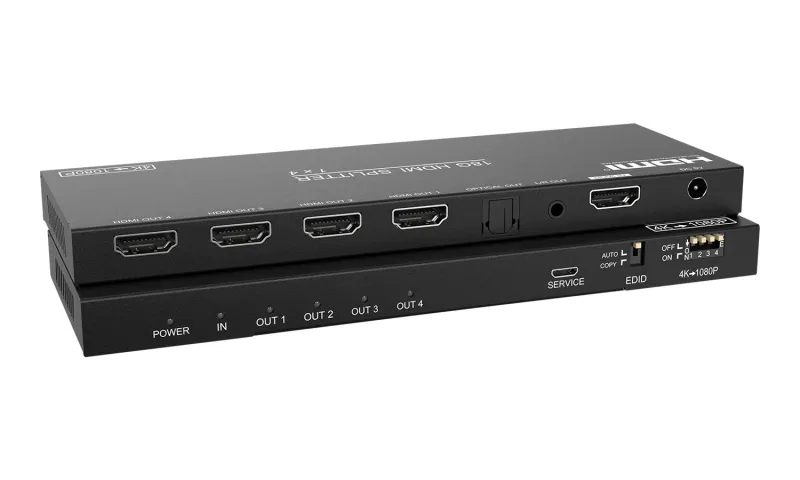

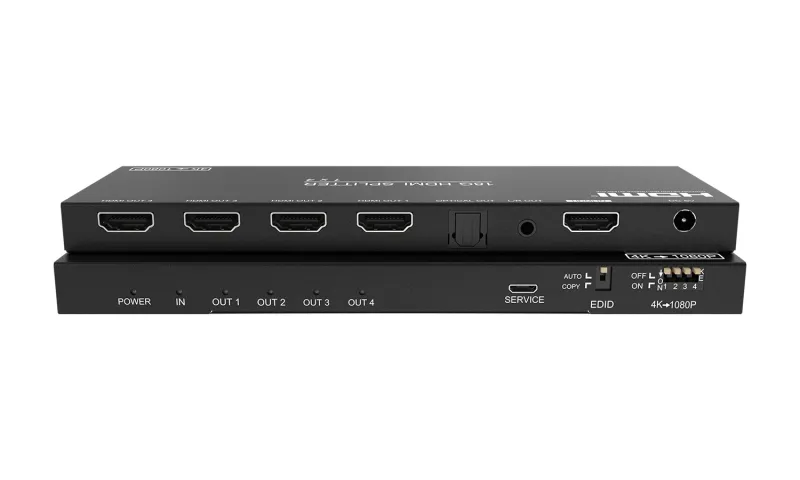

4K 1x4 HDMI Splitter with Audio Extraction

This splitter offers 4K->1080p downscaling on each output and analogue + digital audio ports [SP4K14H-DS]




£74.00ex VAT


In stock


A robust and high quality four way HDMI splitter for distributing video resolutions up to 4K UHD from a single HDMI source to four displays via HDMI leads that can be up to 15m in length. Simple plug and play installation. Small form factor ideal for shelf mounting in small spaces.  The device offers 4K->1080p downscaling on each port which allows you to distribute a 4K source to a mix of 4K and older 1080p HD displays.  Analogue and digital audio outputs on the splitter allow easy and convenient connection to amplifiers or other audio devices.

Technical Specifications

HDMI Compliance HDMI 2.0b
HDCP Compliance HDCP 2.2
Video Bandwidth 18Gbps
Video Resolution

720P50/60Hz, 1080P50/60Hz, 4K2K24Hz, 4K2K30Hz,
4K2K@50/60Hz (4:4:4)

Colour Space RGB, YCbCr 4:4:4, YCbCr 4:2:2
Colour Depth 4K60Hz 8-bit, 1080P 12-bit
HDMI Audio Formats

LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD

Stereo L/R Audio PCM 2.0
Optical Audio Formats

DLPCM[2.0/2.1]CH, Dolby 5.1, Dolby True HD, Dolby DD+, TS 5.1, DTS-ES 6, DTS-HDMA 5.1, DT

Power Supply  5V / 1A DC
Power Consumption 3.5W
Dimensions 180mm (W) × 62mm (D) × 14mm (H)
Weight 227g

The manual for this product is available HERE
