4K@60Hz over Cat5e/6/7 HDMI Extender

Send Ultra High Definition (UHD) and (HD) signal up to 60 meters over Cat5e/6/7. Resolution up to 4K2K@60Hz 4:4:4 is supported. Allows you to watch and control your Sky Q, Apple TV 4K, Virgin TV UHD etc in a second room. One-way Infra Red remote control pass-through allows control of your UHD source from in front of the remote display.

A loop-through output.on the TX unit means acts as a splitter that allows a second TV to be connected to the UHD source. Two way power over cable is another installer friendly feature that means that the system only has to be powered from one end.

  • HDMI 2.0, HDCP 2.2 / HDCP 1.4 and DVI 1.0 compliant.
  • Supports HDR.
  • Supports input and output video resolution up to 4k2k@60Hz 4:4:4.
  • Send 4K@60 up to 50m with Cat5e or up to 60m using Cat6/7. 4K@30 or 1080p will reach up to 60m (Cat5e) or 70m (Cat6/7)

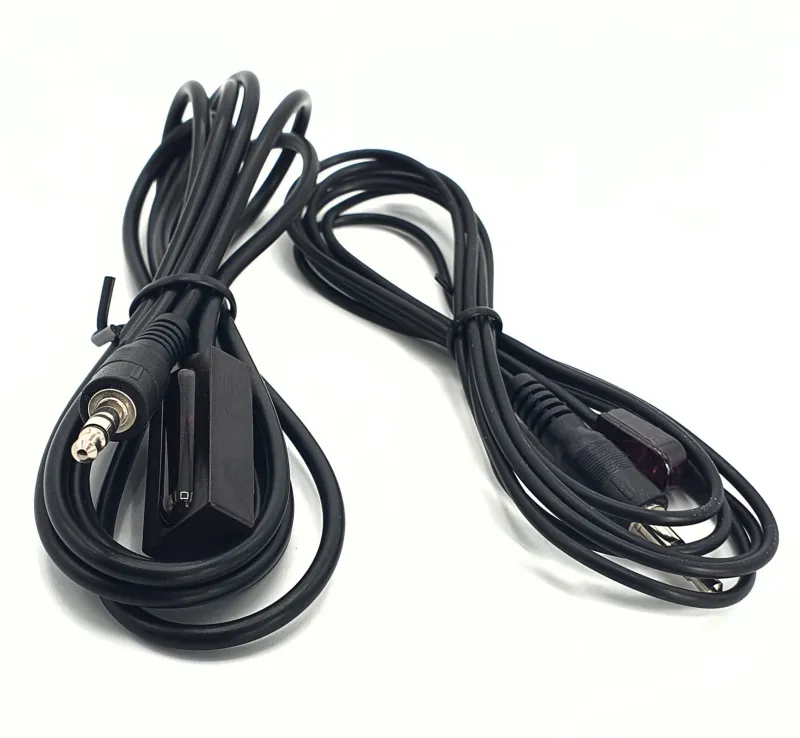

  • Supports one-way Infra Red remote control pass-through
  • Power over Cable (PoC) means that only one of TX or RX requires power adaptor.

Technical Specifications

HDMI Compliance HDMI 2.0
HDCP Compliance HDCP 2.2 / HDCP 1.4
Video Bandwidth 18Gbps
Video Resolution Up to 4K60Hz 4:4:4
Color Space RGB / YCbCr 4:4:4, YCbCr 4:2:2/4:2:0, YUV 4:4:4
Color Depth 8/10/12-bit (1080P60Hz, 4K30Hz, 4K60Hz YCbCr 4:2:2/4:2:0) 8-bit (4K60Hz 4:4:4 )
HDMI Audio Formats LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus(DD+), DTS-ES, DTS HD Master, DTS HD-HRA, DTS-X

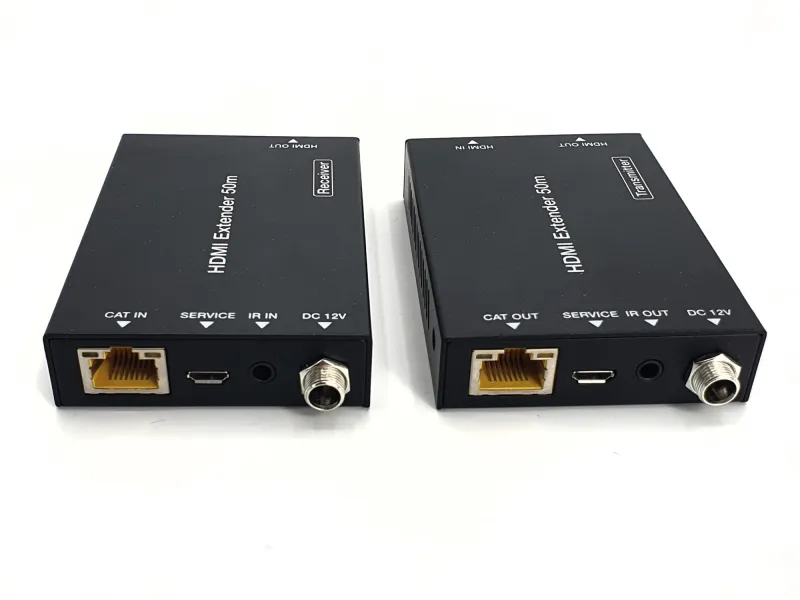

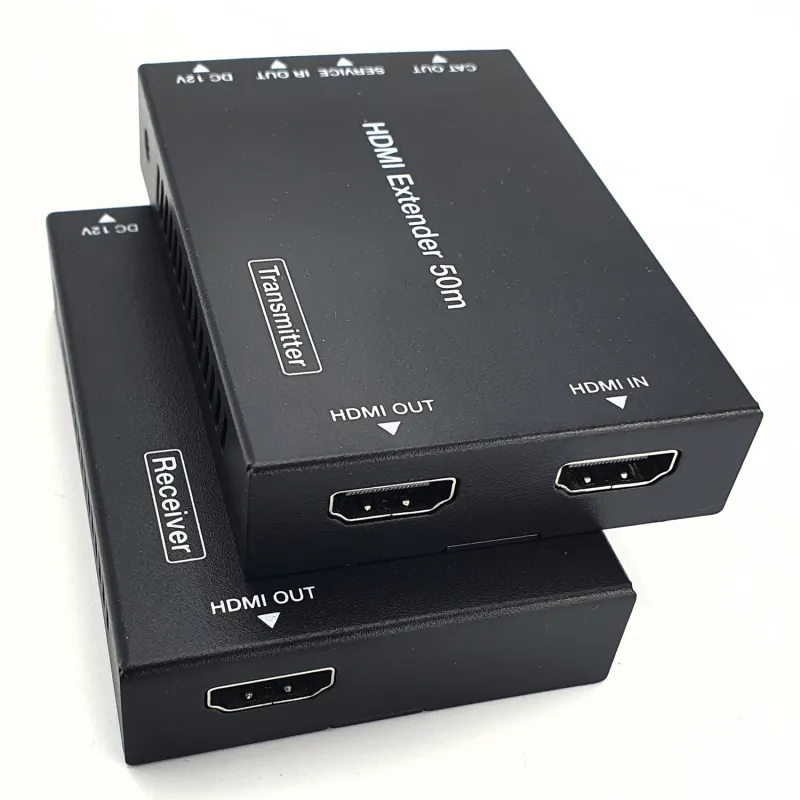

Transmitter Inputs 1x HDMI Type A [19-pin female], 1x SERVICE [Micro USB, Update port]

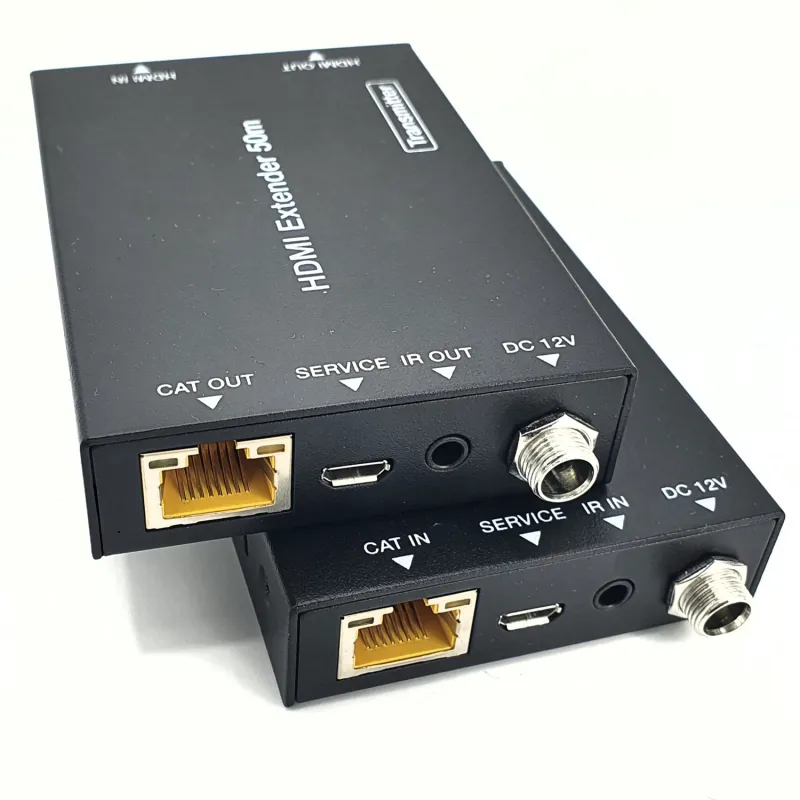

Transmitter Outputs 1x HDMI Type A [19-pin female] 1x IR OUT [3.5mm Stereo Mini-jack] 1x CAT OUT [RJ45, 8-pin female]

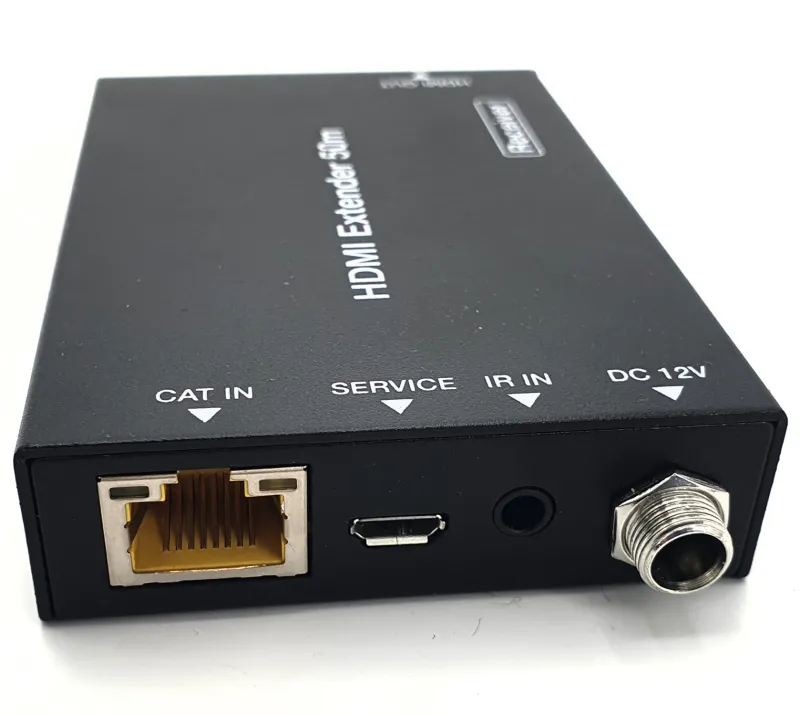

Receiver Inputs 1x IR IN [3.5mm Stereo Mini-jack] 1x CAT IN [RJ45, 8-pin female] 1x SERVICE [Micro USB, Update port]
Receiver Outputs 1x HDMI Type A [19-pin female]
Housing Metal Enclosure
Dimensions Transmitter / Receiver: 61mm [W] x 88mm [D] x 18mm [H]
Weight Transmitter: 160g, Receiver: 155g
Power Supply Input: AC 100 - 240V 50/60Hz Output: DC 12V/1A
Power Consumption 3.84 W

Cable / Resolution / Distance Table

 Cat5e         4K@60 - 50m  /  4K@30 - 50m  / 1080p - 50m
 Cat6/6a/7        4K@60 - 60m  /  4K@30 - 70m /  1080p - 70m
 HDMI Input Cable     Maximum 3m
 HDMI Output Cable     Maximum 10m


The user manual is available to download HERE.




£87.00ex VAT


In stock
